2nd Generation | 1 Channel Smart Heating & Security Sensor Kit

2nd Generation | 1 Channel Smart Heating & Security Sensor Kit

Name: 2nd Generation | 1 Channel Smart Heating & Security Sensor Kit
Brand: Drayton by Schneider Electric
Price: 225.8 GBP
Availability: InStock

Take control of your comfort, energy bills and security with our intelligent heating system - designed to learn, adapt and save. Go beyond heating with our 2nd Generation kits for an even richer smart home experience, and this Optimiser bundle includes extra security-focused sensors.

• Save up to 30%* on heating costs with smarter scheduling and energy-saving modes.

• 2nd Generation compatibility provides control of heating, security and automation devices from anywhere via the Wiser Home app and voice assistants.

• Simple installation and wireless pairing.

£225.80

Quantity:

Estimated delivery 3-5 working days (Free Delivery over £75 & Free Returns).

2nd Generation | 1 Channel Smart Heating & Security Sensor Kit

£225.80

Get to know the 1 Channel Smart Security Kit

Experience unparalleled control over your home's heating and get peace of mind with added security monitoring and automation with this Wiser 1 channel 2nd Generation Smart Security Kit, perfect for combi boiler systems.

Connect smart radiator thermostats for room-by-room scheduling and smart control via the Wiser Home app and smart speakers. Connect additional smart home devices for added home automation, comfort and security.

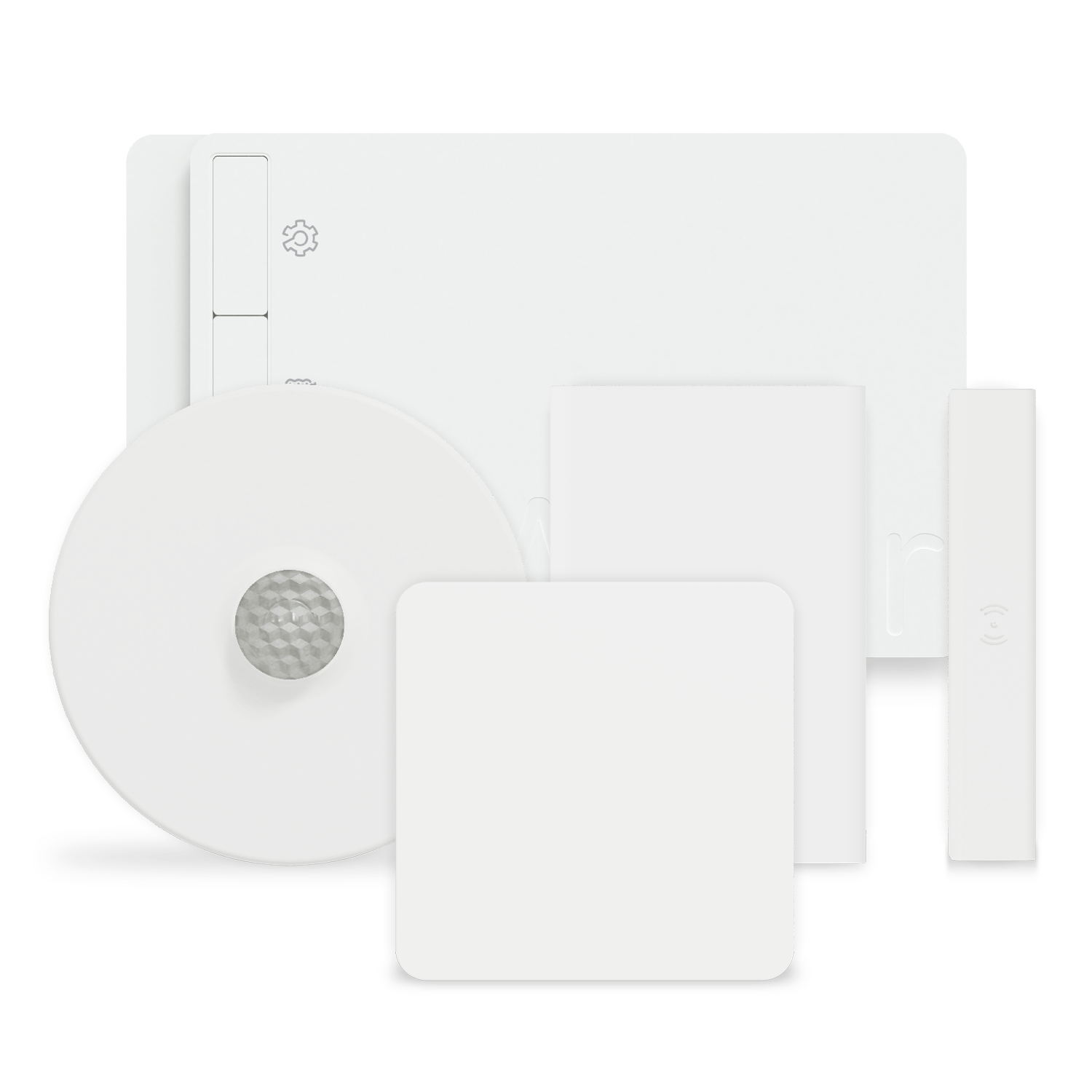

• Includes a 1 channel HubR, Temperature & Humidity Sensor, Motion Sensor and Window & Door Sensor
• Control 1 channel of central heating via the Wiser Home app
• Control up to 16 rooms with up to 63 Wiser devices
• Expand the system further with add-ons including additional smart radiator thermostats, smart plugs, electrical heat switches, smart underfloor heating controller, further smart sensors, and micro modules
• Interfaces with heat pumps via On/Off controls.
• Eco, Comfort and Away Modes
• Both relay and OpenTherm connections
• Boiler Plus compliant
• Connects to 2.4GHz Wi-Fi
• Works with Amazon Alexa, Google Assistant, and IFTTT
• Advanced scheduling and customisation with Moments
• Separate devices network with Zigbee mesh technology

Specifications

Hub dimensions	150.8mm (w) 94mm (h) 30.25mm (d)
Temperature and Humidity Sensor dimensions	45mm (w) 45mm (h) 17.2mm (d)
Motion Sensor dimensions	70mm (w) 70mm (h) 26.6mm (d)
Window and Door Sensor dimensions	42mm (w) 50mm (h) 16.3mm (d)
Window and Door Sensor power supply	Battery 3V / CR2450
Temperature and Humidity Sensor power supply	Battery3 V / CR2450
Hub power supply	230V a.c. ±10% 50Hz
Motion Sensor power supply	Battery 2 x 1.5V / LR03 AAA
Hub Switch Rating	2A resistive 230V a.c. each switch (not suitable for inductive loads)
Window and Door Sensor wiring	No wiring required
Motion Sensor wiring	No wiring required
Window and Door Sensor ingress protection	IP20
Motion Sensor ingress protection	IP20
Temperature and Humidity Sensor ingress protection	IP20
Hub ingress protection	IP30
Window and Door Sensor mounting	Screw or supplied adhesive strip
Motion Sensor mounting	Screw or supplied adhesive strip
Temperature and Humidity Sensor mounting	Screw or supplied adhesive strip
Hub mounting	Wall plate

Documentation

Wiser System User Guide

Manage your home anywhere

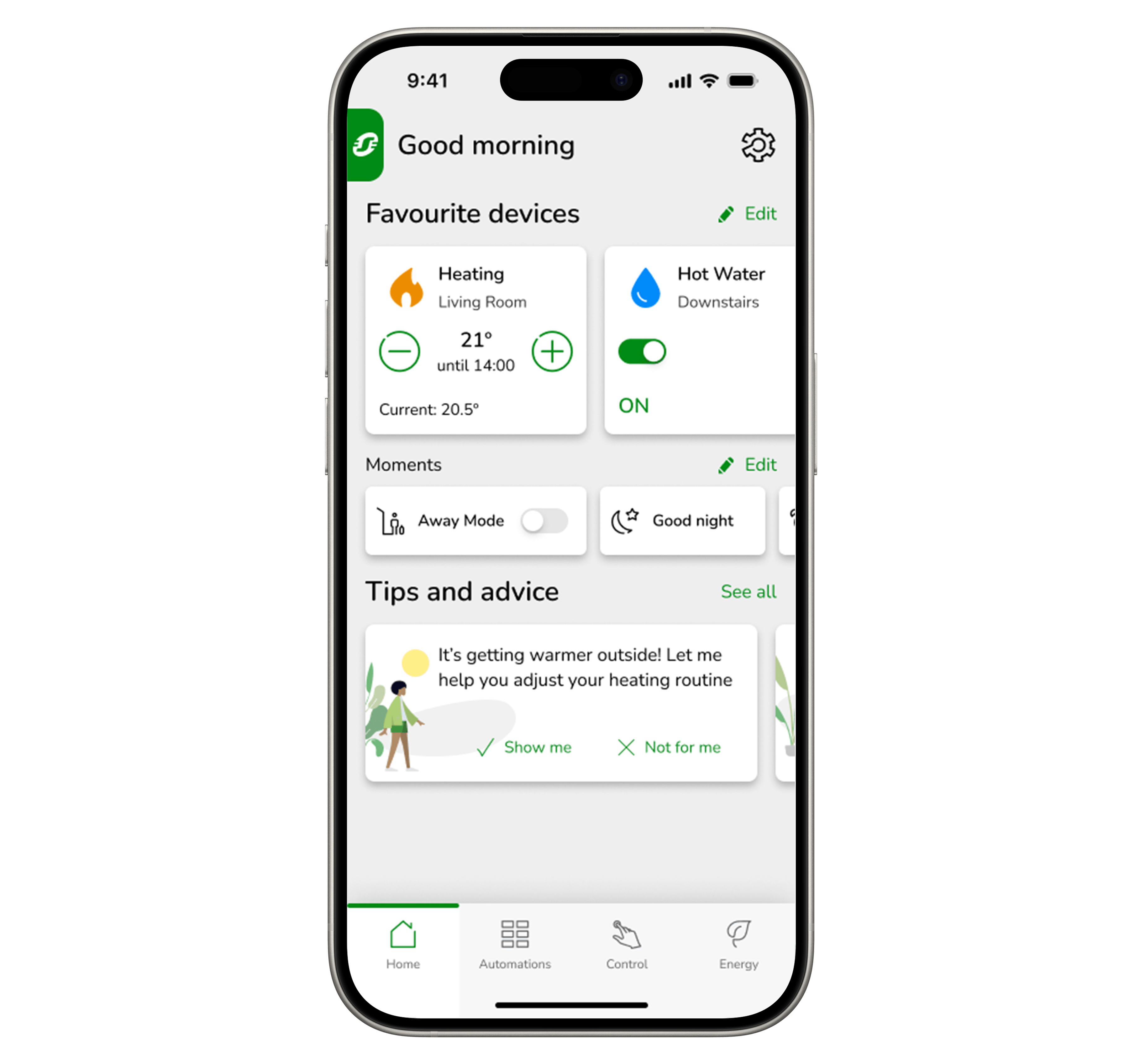

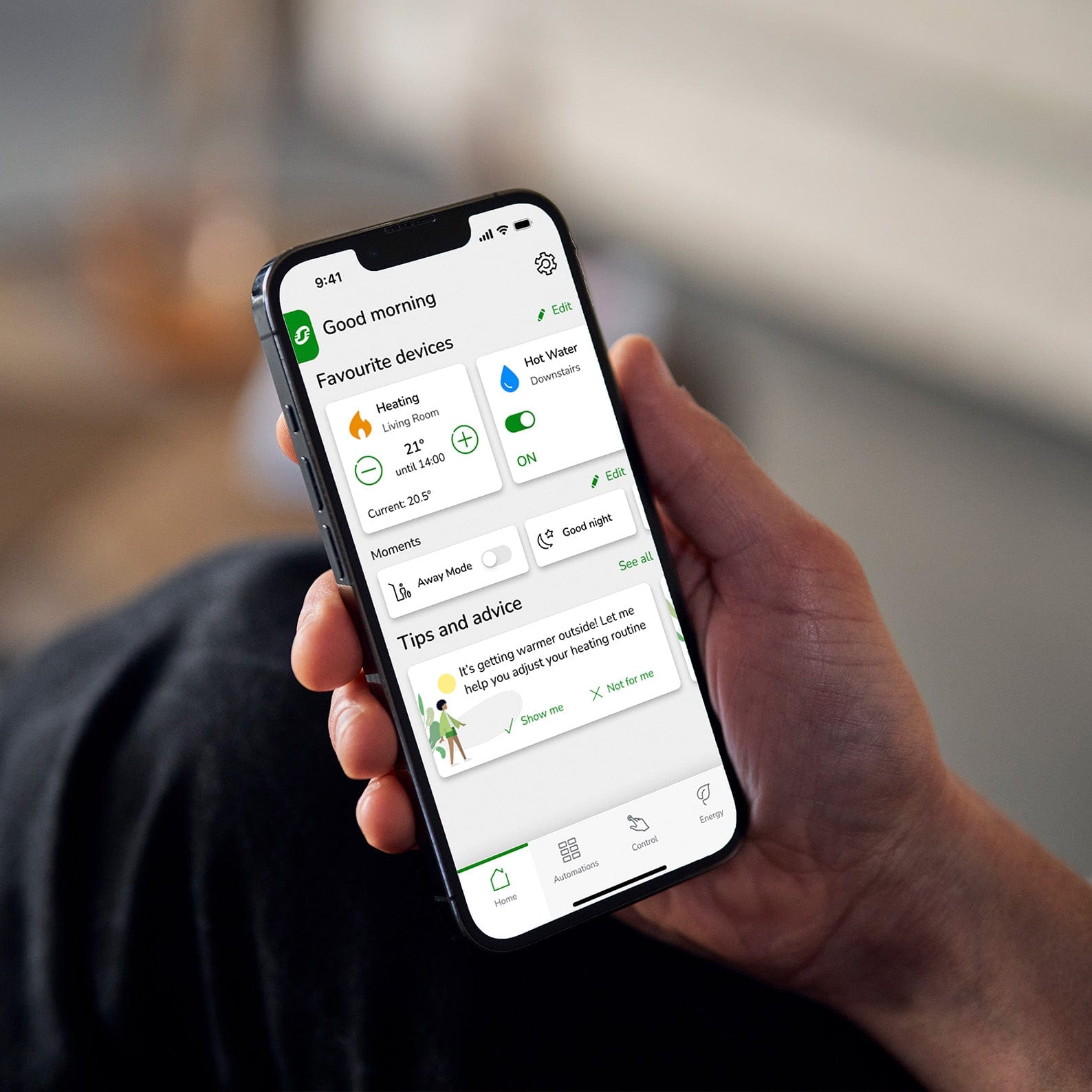

Wiser’s intuitive app provides seamless control over your smart home system, allowing you to adjust settings remotely.

Cut annual bills

Start saving right away with the flexibility to tailor schedules, plus Smart Modes that learn and adapt to save up to 30%* energy.

The all-in-one automation solution

Wiser’s advanced zoning capabilities allow you to set different temperatures for individual rooms and use smart sensors and power modules to monitor, control and set custom automations.

UK customer service

Have a question? Wiser's highly trained technical team is there for you Monday-Friday 8am-6pm, online and by phone.

3 year warranty

Enjoy peace of mind with our high quality products when you need it the most, backed by 75 years of innovation.

Kit, done. Now extend your smart home system

Add to your buildable system with the 2nd Generation compatible add-ons, effortlessly integrating with your smart home kit for enhanced efficiency, monitoring, automation and comfort.

View all

Smart Plug

Enhance your smart home with the Wiser Plug, a smart plug that both gives you smart control of electrical devices and boosts signal.

4.4

£43.50

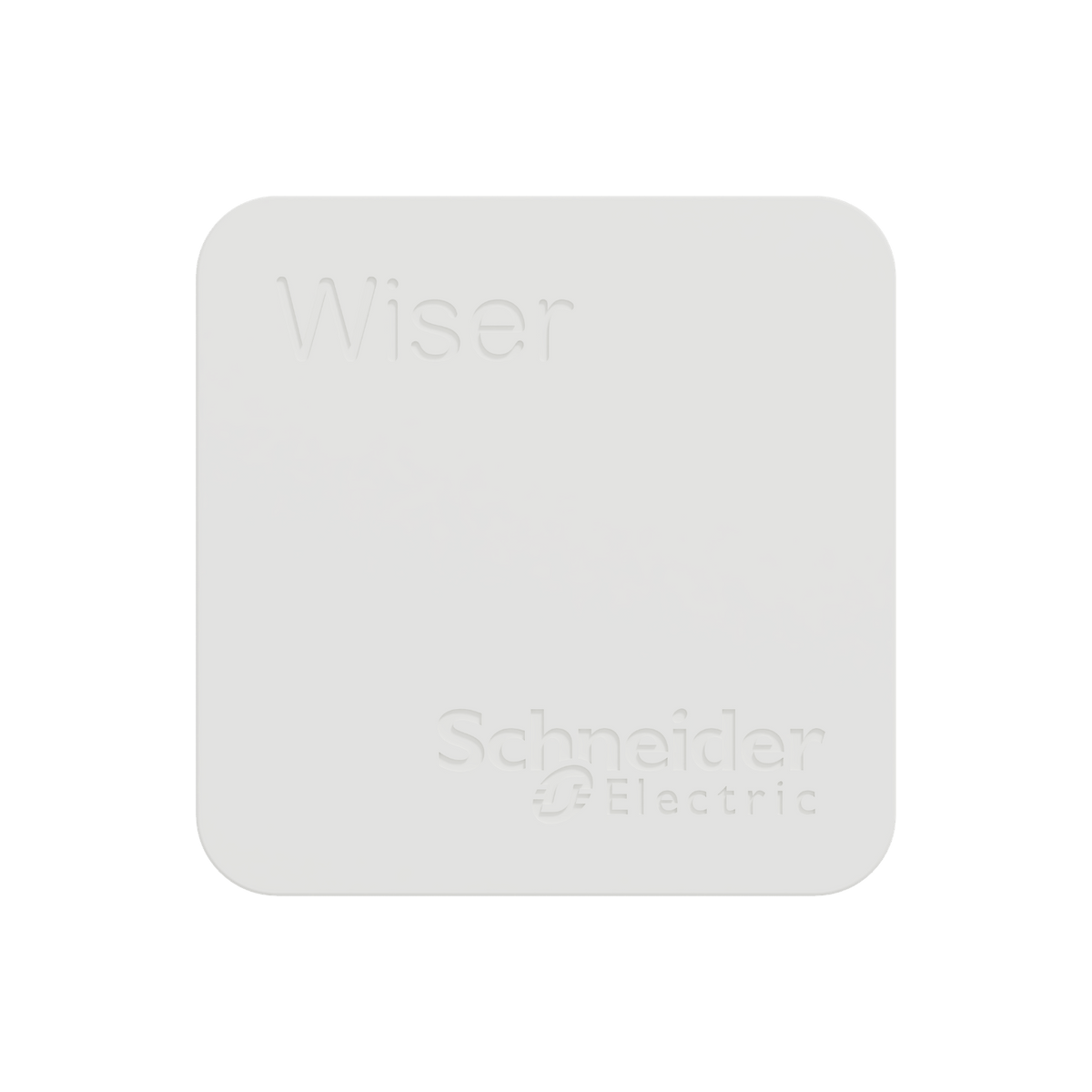

Temperature & Humidity Sensor

A low-cost alternative to our room thermostat. Connect to a 2nd Generation Hub to monitor temperature and humidity remotely and automate with other Wiser devices.

£27.00

Smart Radiator Thermostat

Expand your Wiser system and benefit from room-by-room control with our Smart Radiator Thermostat. Set independent schedules for every room and enhance your comfort and energy savings.

4.4

From £56.50

Smart Radiator Thermostat Multipack

Control more rooms for less with our multipack. Extend your smart home for ultimate comfort and energy savings when you add a Smart Radiator Thermostat to every room.

5.0

£160.00

Motion Sensor

Connect to the Wiser 2nd Generation Hub/HubR for motion detection alerts. Pair with the Wiser plug or Wiser LED Dimmer to turn on lights when motion is detected, for both convenience and security.

£29.00

Water Leakage Sensor

Detects the presence of water with an audible alarm. Connect to Wiser 2nd Generation Hub/HubR for smartphone alerts and in-app monitoring in at-risk areas like baths and sinks.

£29.00

FAQ

Will Wiser 2nd Generation 1 Channel Smart Heating & Security Sensor Kit allow me to control my heating from my smart phone?

Yes. Simply download the Wiser Home app and connect your Wiser 2nd Generation 1 Channel Smart Heating & Security Sensor Kit to the app to control your heating from anywhere.

Is the Wiser 2nd Generation 1 Channel Smart Heating & Security Sensor Kit suitable for use with a combi boiler?

Yes. The Wiser 2nd Generation 1 Channel Smart Heating & Security Sensor Kit is an ideal starter kit for combi boilers where the heating is controlled by one central thermostat and hot water is on demand.

Do I need to pay a subscription to use Wiser?

No. Everything you need to control your heating and smart devices is contained in your new kit.

What is the Wiser Motion Detector?

The Wiser Motion Sensor detects movement and measures ambient light (luminance), sending this data to your Wiser Hub to enable smart automation and security features.

You can use it to trigger lights, alarms, or notifications when motion is detected, ideal for entryways, hallways, or rooms you want to monitor.

The sensor is wireless and battery powered, making installation simple Pairing is done via the Wiser Home app.

You can configure detection sensitivity and luminance thresholds in the Wiser Home app to suit your environment and preferences.

What is the Wiser Window and Door Sensor?

By alerting you instantly when a door or window is opened unexpectedly, it helps raise awareness of unauthorized access and gives you peace of mind, especially when you're away.

Automate other Wiser devices based on door/window activity by creating smart rules like turning on lights when a door opens or sending alerts if a window is opened during certain hours.

Enhance room by room control of heating by setting up automations in the Wiser Home app to prevent rooms being heated when windows are open, reducing wasted energy.

It’s easy to install and pair with the Wiser system. The sensor consists of two parts, a sensor and a magnet, and installs easily on most doors or windows using the provided screws or sticky pads.

Looking for a complete smart heating kit?

Use our Product Selector

*Smart thermostat system percentage savings based on BEAMA and Salford university research statistics 2021. Savings are a guideline and will vary based on your home's thermal performance.
