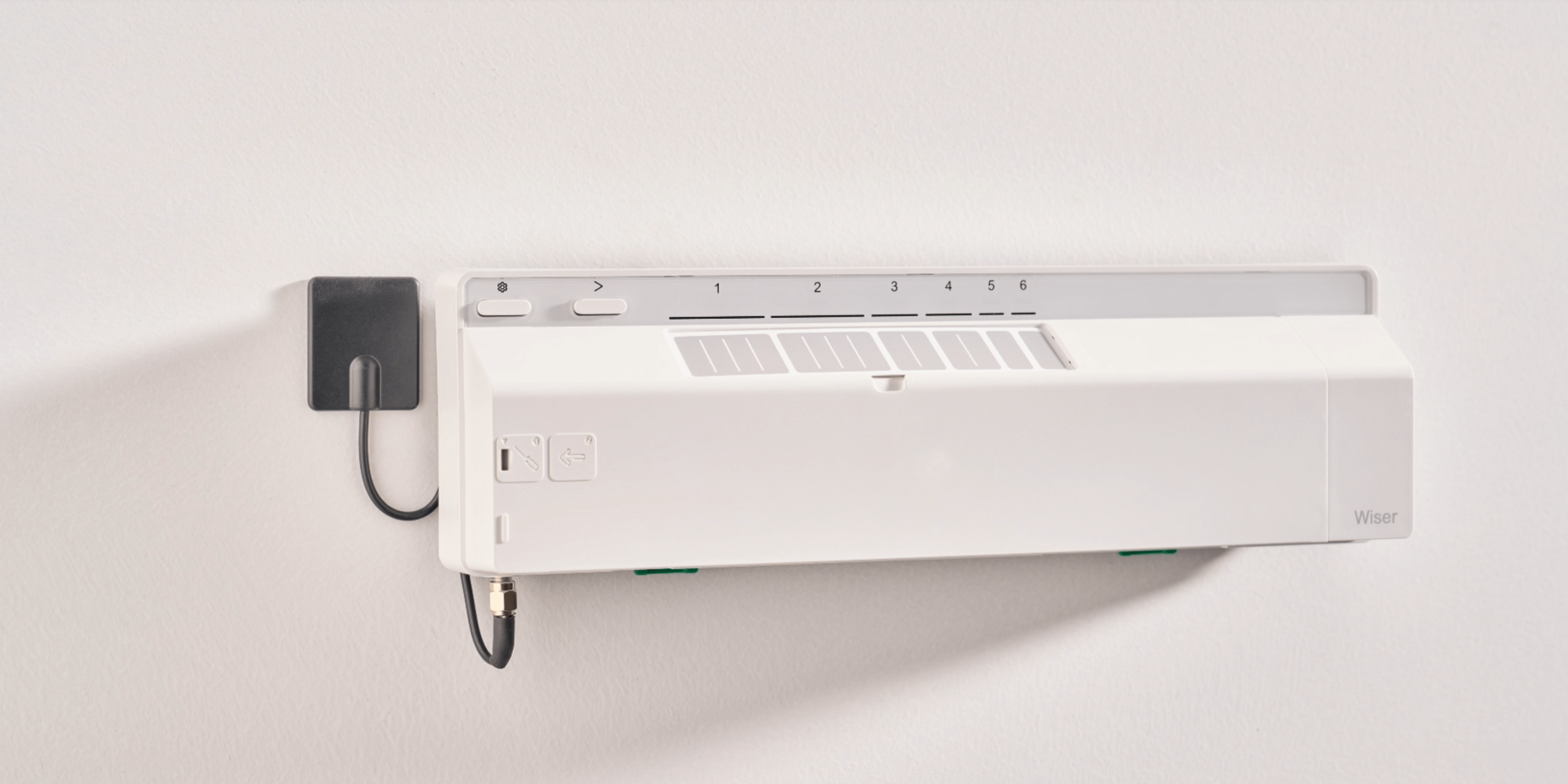

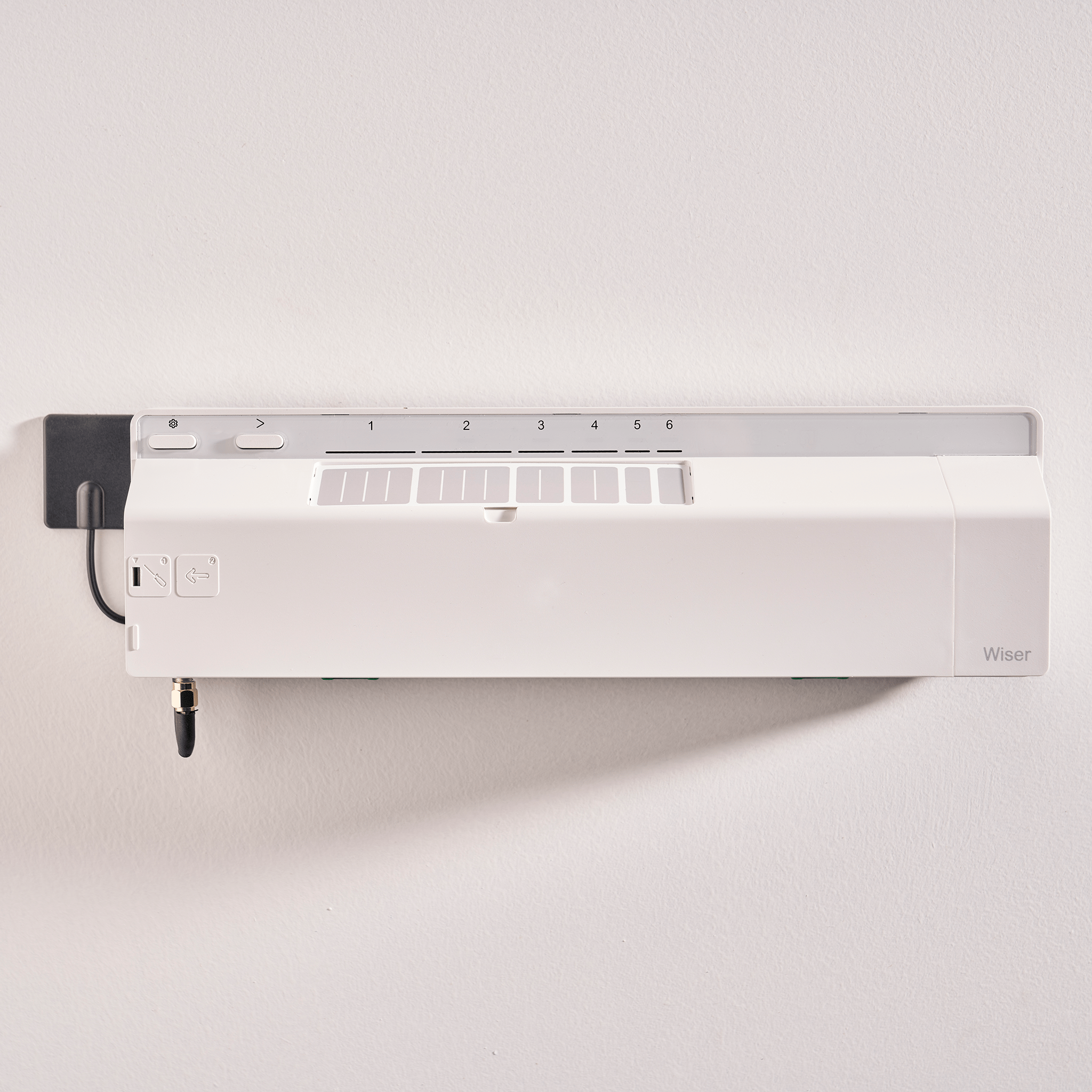

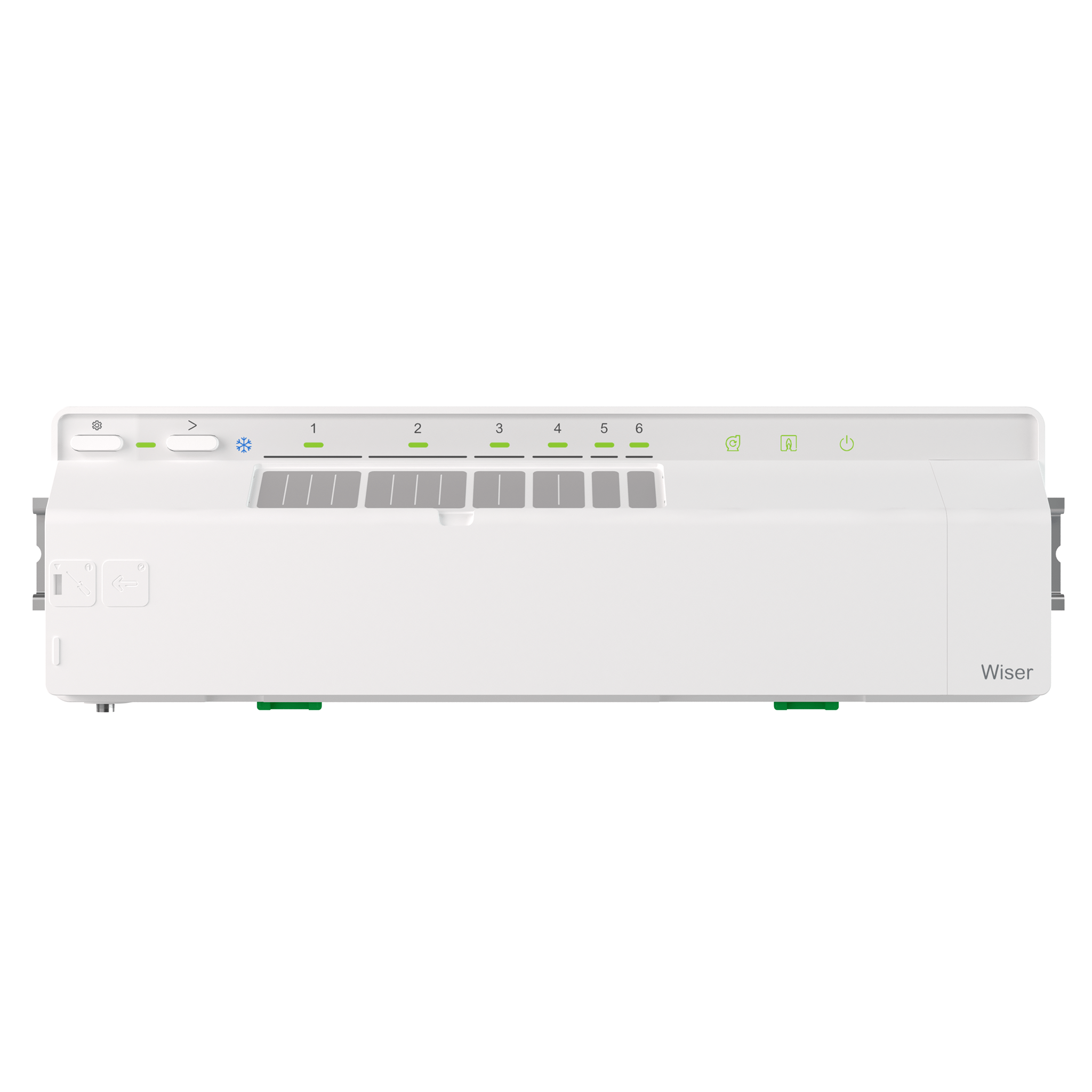

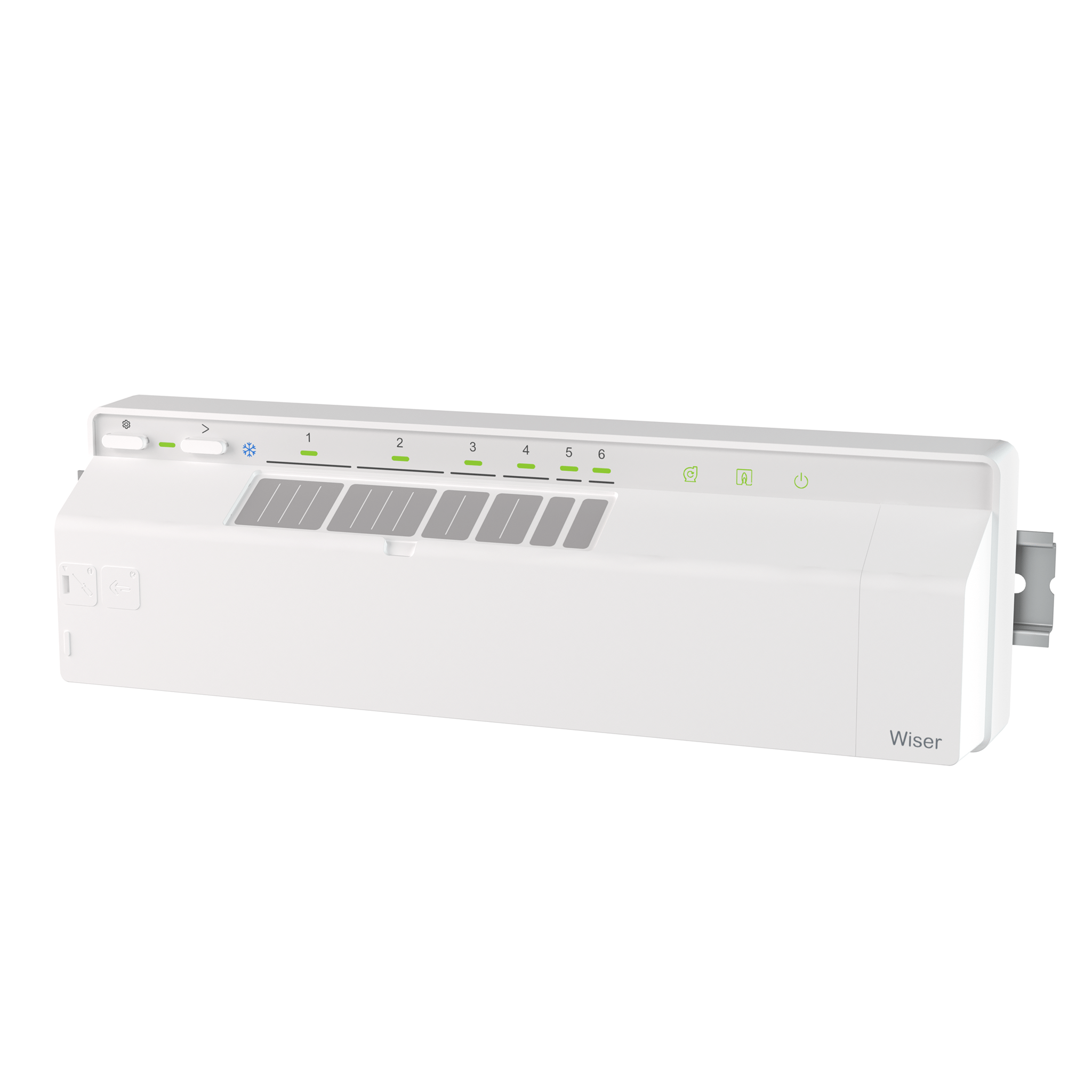

Smart Underfloor Heating Controller
Take control of your comfort and energy bills with our smart underfloor heating system - empowering you to maximise comfort and efficiency.
• Save on heating costs with smarter scheduling and energy-saving modes.
• Control your water-based underfloor heating from anywhere via the Wiser Home app and voice assistants.

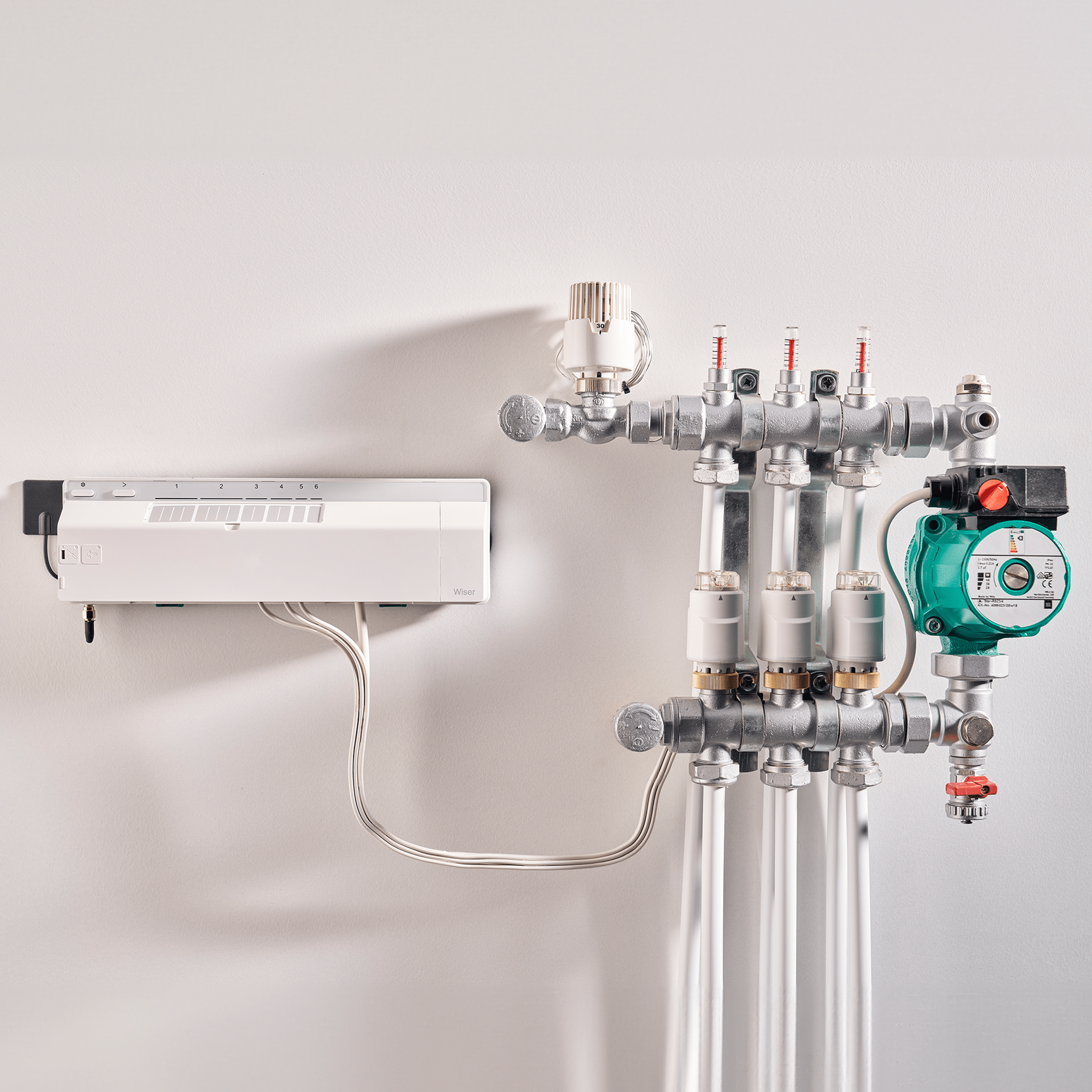

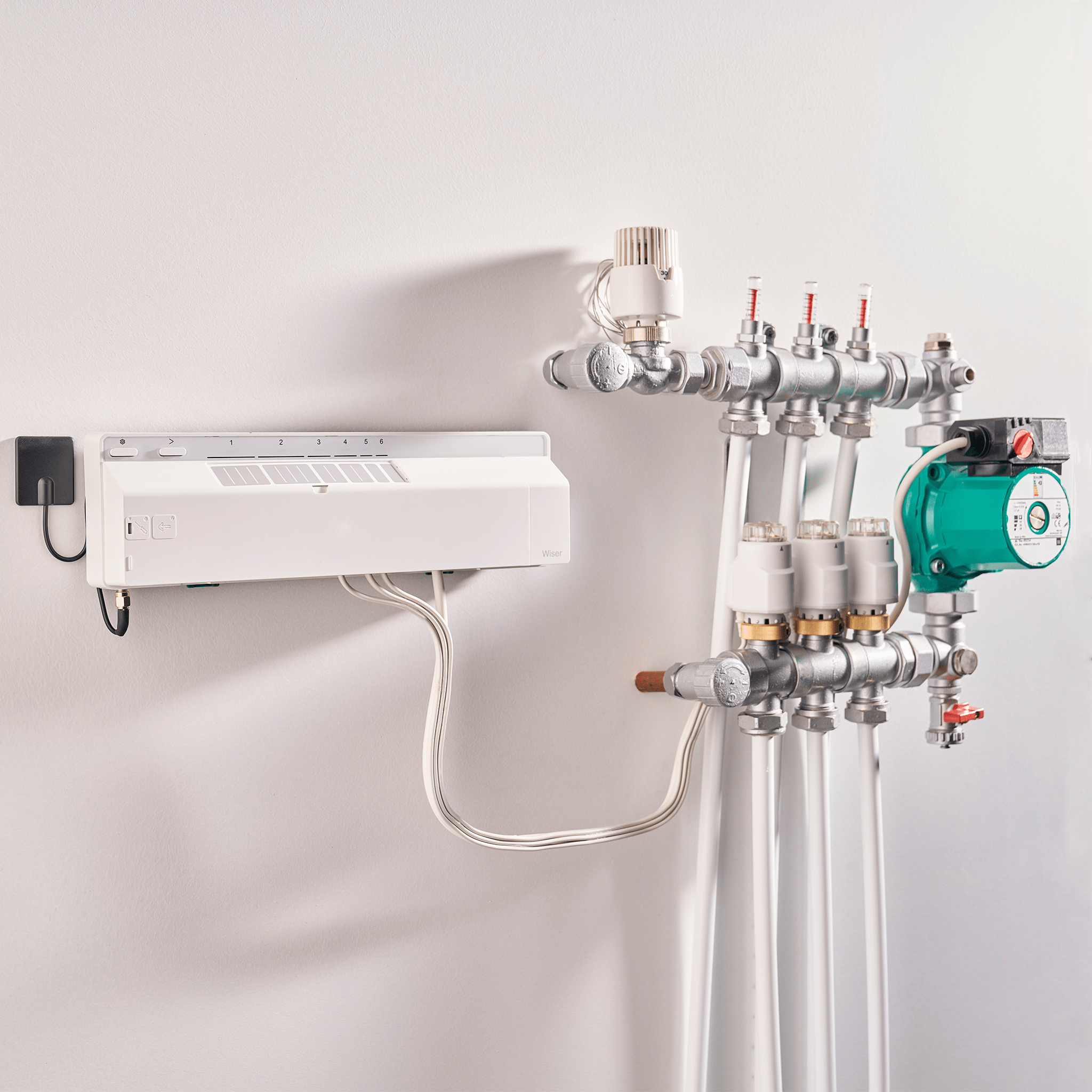

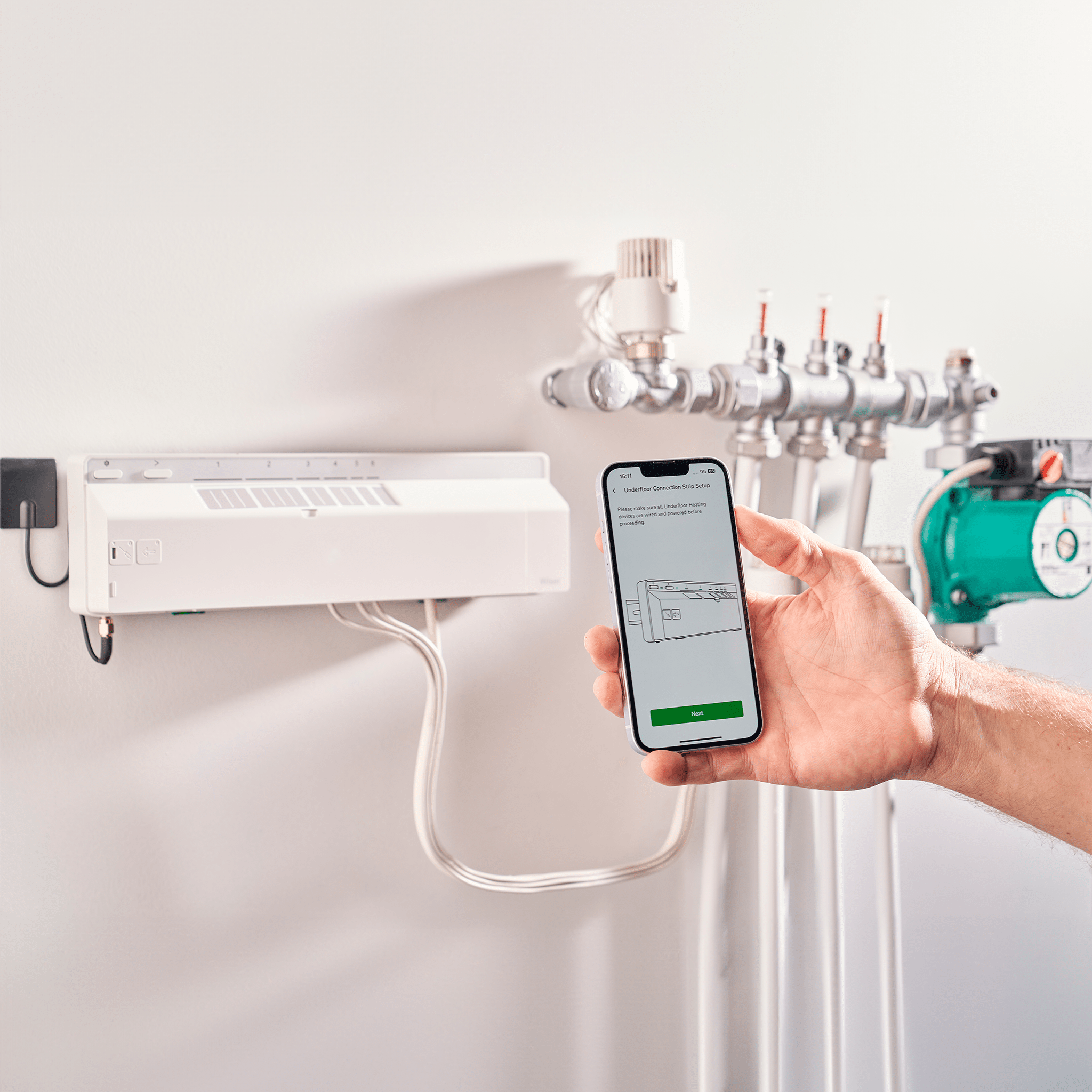

• Simple installation alongside an existing manifold, multi-zone control with our thermal actuators (fit to the existing manifold) and easy wireless app pairing.

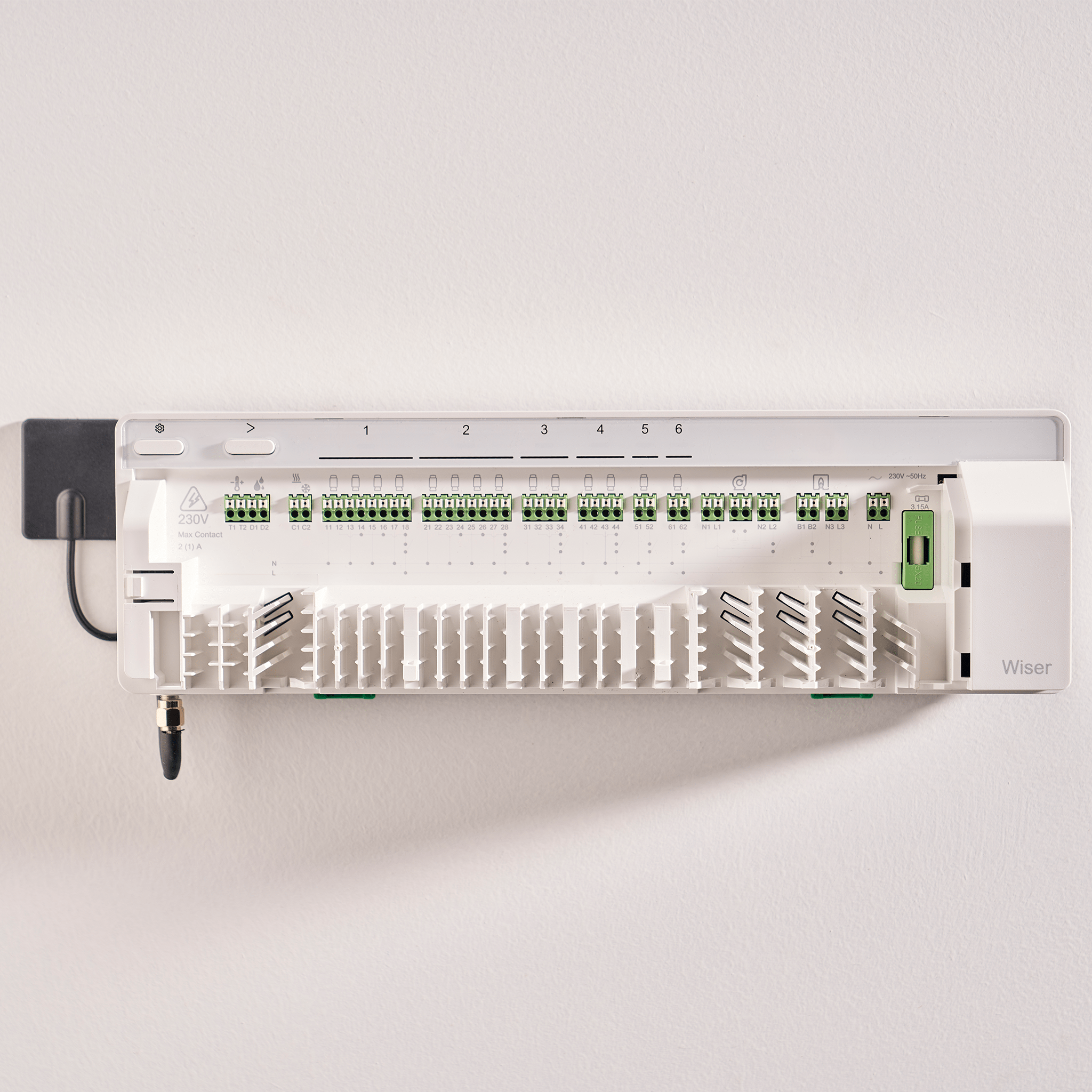

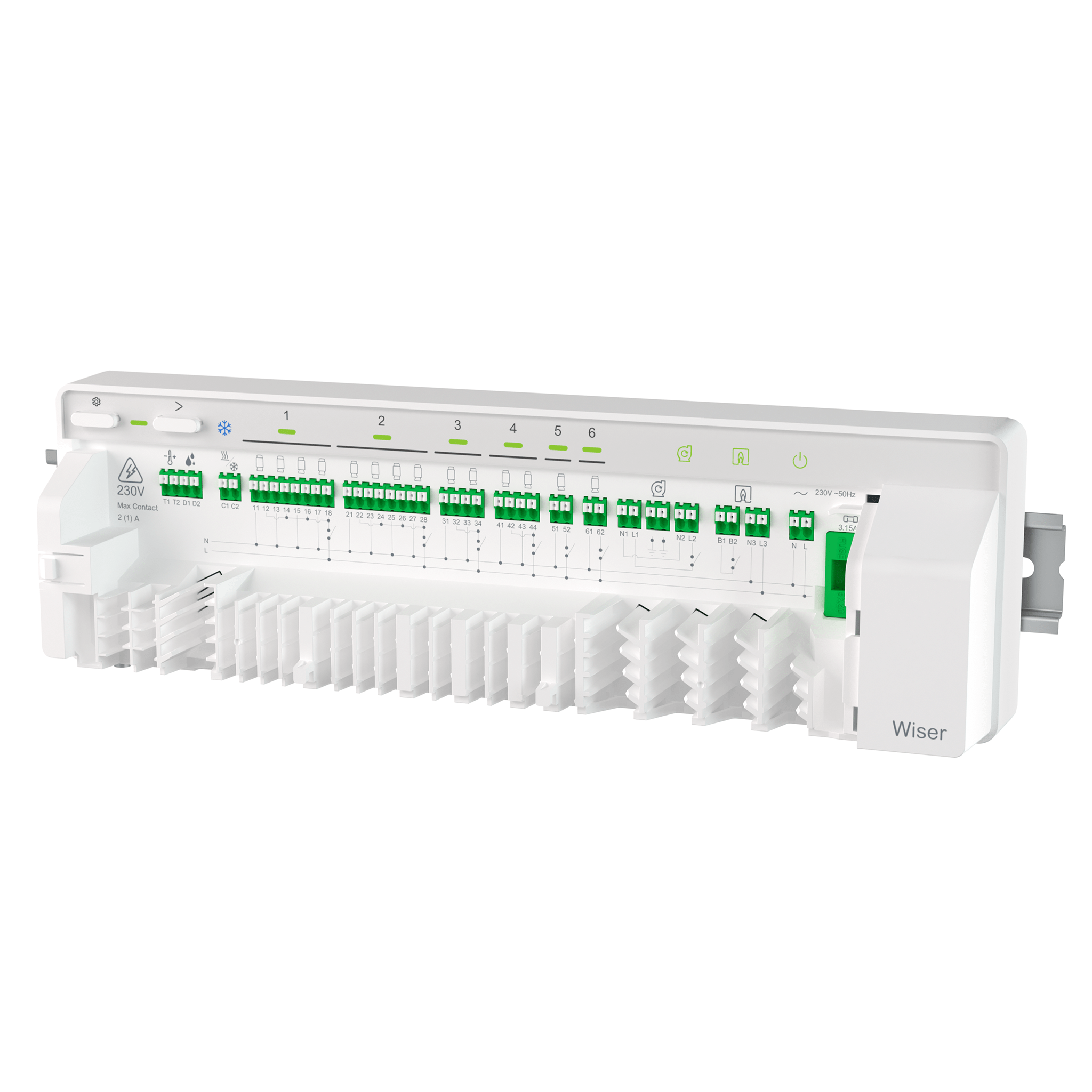

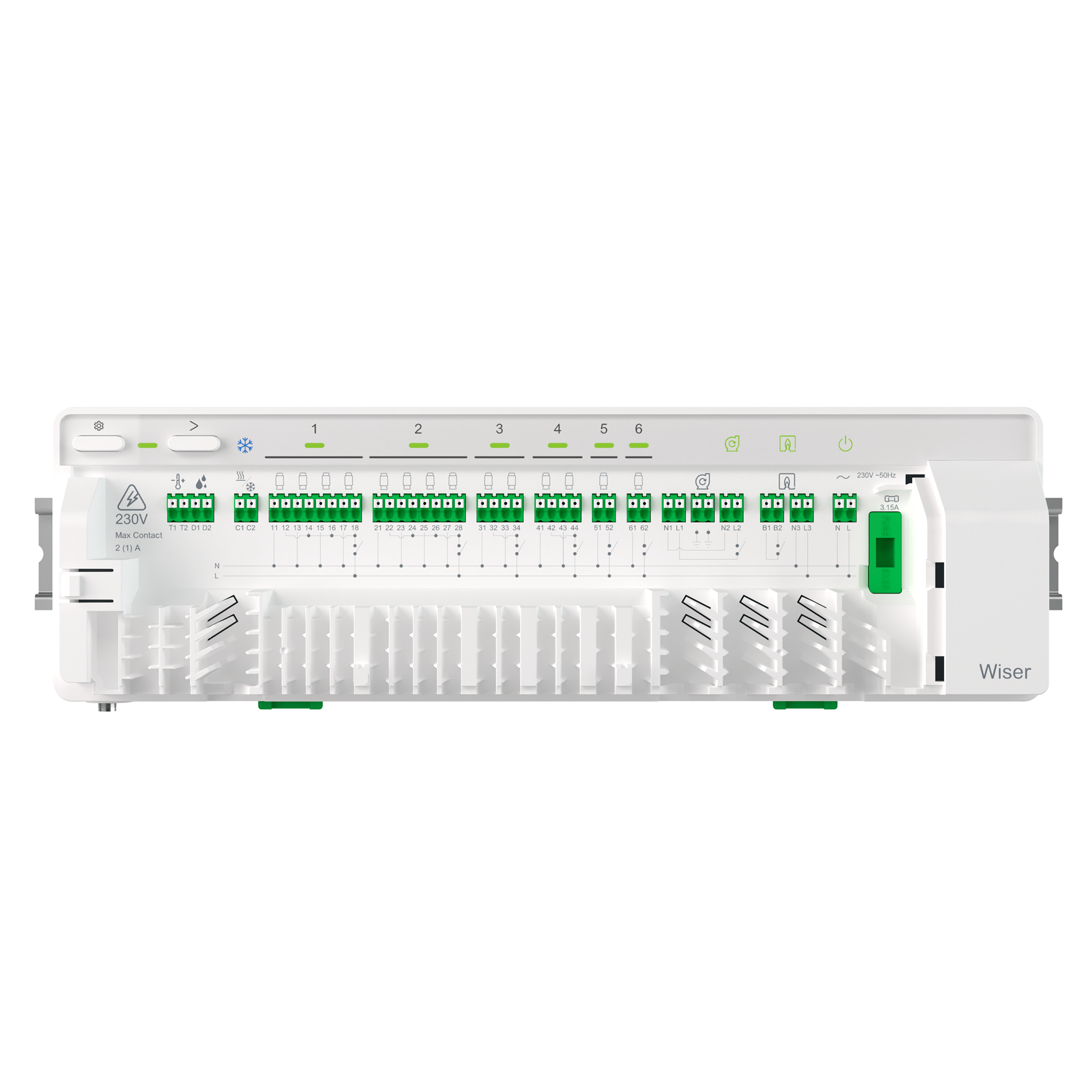

Get to know the Smart UFH Controller
Specifications
| SKU | WF762F1A0902 |
| Range | Wiser |
| Compatibility | |
| Mobile app name | Wiser Home |
| Device application | Smart connected underfloor heating controller |
| Product specific application | Controls 6 zones of wet underfloor heating |
| Warranty | 3-year extended warranty |
| Kit composition | |
| Wiser Underfloor Heating Controller dimensions | 305mm(w), 90mm(h), 65mm(d) |
| Number of 3W actuators per device | 14 |
| Number of zones per device | 6 |
| Relay output | Normally open 2 (1) A |
| Terminals | Screwless for type Y 0.08 – 1.5 mm2, AWG 16-28” |
| Operating modes | Heating and cooling |
| Wiser Underfloor Heating Controller power supply | 230V a.c. ±10% 50Hz |
| Wiser Underfloor Heating Controller switch rating | 3.15A |
| Wiser Underfloor Heating Controller wiring | Fixed wiring only, to comply with current IET regulations (BS7671) |
| Wiser Underfloor Heating Controller ingress protection | IP 30 |
| Radio technology/frequency | 2.4GHz (Bi-directional, Mesh) |
| Sustainable offer status | Green Premium product |
| WEEE | The product must be disposed of in European Union markets following specific waste collection and never end up in rubbish bins |
Documentation
Looking for more Wiser Add-ons?
Build your system further using our add-ons, effortlessly integrating with your smart thermostat kit for enhanced efficiency and comfort.
View all
But don't just take our word for it...
Paul S.
Wiser? Appropriate name.
I have dropped my gas consumption by approximately 18% every year for the last 3 years. It's more than paid for itself plus some. Very easy to install and set up. Had no issues with it, very happy.
Ken D.
Fantastic and straight forward to install.
I’m 73 and installed the Wiser Hub, thermostat and smart TRVs a couple of weeks ago. I think the system is fantastic and straight forward to install. There’s tons of advice and tips on YouTube but the more you use it the more intuitive it becomes!
Mr. C.
No regrets.
The Wiser system is like a breath of fresh air - it just works as it's supposed to.
No regrets.
