TS Ultra+ Thermal Actuator 230V | Wiser Underfloor Heating Controller Compatible

TS Ultra+ Thermal Actuator 230V | Wiser Underfloor Heating Controller Compatible

Name: TS Ultra+ Thermal Actuator 230V | Wiser Underfloor Heating Controller Compatible
Brand: Wiser
SKU: 48111051017
Price: 19.0 GBP
Availability: InStock

Take control of your comfort and energy bills with our intelligent heating devices - designed to put more power in your hands. This upgraded TS Ultra+ differs from TS Ultra with a larger closing force, and higher operating temperature, and includes a plug-in cable and manual feature.

• Enhance your water-based underfloor heating with multi-room control, smarter scheduling and energy-saving modes.
• Expand your system with extra devices and control your heating from anywhere via the Wiser Home app and voice assistants.
• Quick and simple installation on an existing water-based underfloor heating manifold.

£19.00

Quantity:

Estimated delivery 3-5 working days (Free Delivery over £75 & Free Returns).

TS Ultra+ Thermal Actuator 230V | Wiser Underfloor Heating Controller Compatible

£19.00

Get to know the TS Ultra+ Thermal Actuator

The TS Ultra+ Thermal Actuator works with Wiser's Smart Underfloor Heating Controller to enable smart multi-zone wet underfloor heating with Wiser Home app smart control.

You'll need one thermal actuator for each channel of your wet underfloor heating controller.

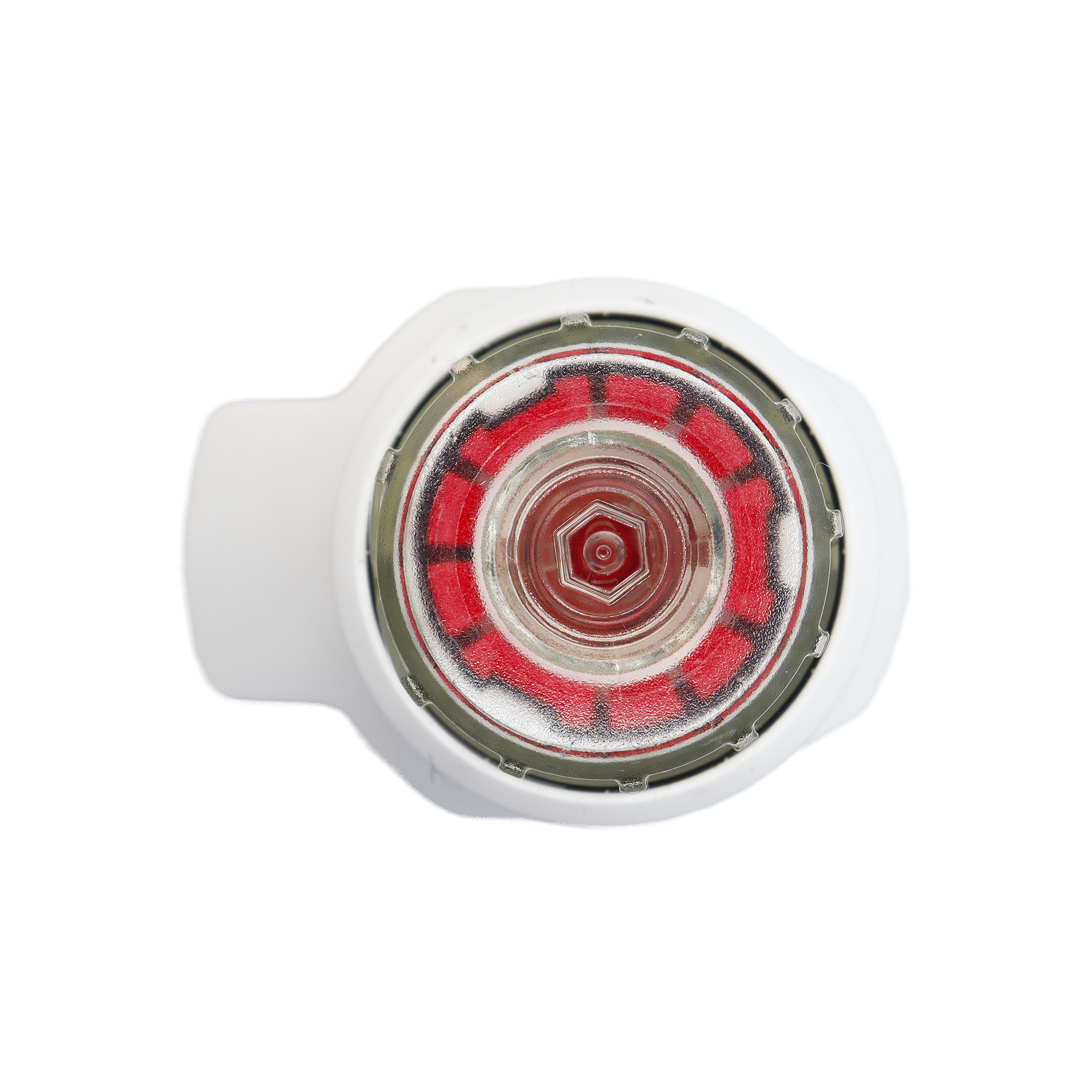

• 360° valve status indication
• Closing force 120N
• Stroke 5.5mm
• Fast response - opening to 4mm in 2 minutes
• IP55 ingress protection
• Plug-in cable
• Manual feature
• Stroke 5.5mm

Specifications

SKU	0481 1105 1017
Product type	Thermal actuator
Compatibility	M30 x 1.5mm
Device application	Thermal actuators for underfloor heating manifolds
Warranty	3-year extended warranty
Kit composition	1 x TS Ultra+ 1 x Detachable cable
Drayton TS Ultra+ dimensions	82mm(h) x 39mm(w) x 54mm(d)
Actuator type	Open/closed
Valve type	Normally open
Stroke	5.5mm
Closing force	120N
Drayton TS Ultra+ power consumption	2.5W
Drayton TS Ultra+ Power Supply	230V a.c. ±10% 50Hz
Closing force	120N

Documentation

Wiser System User Guide

Manage heating anywhere

Wiser’s intuitive app provides seamless control over your heating system, allowing you to adjust settings remotely

Cut annual bills

Start saving right away with the flexibility to tailor schedules and Smart Modes that learn and adapt to save up to 30%* energy.

Comfort in every room

Wiser’s advanced zoning capabilities allow you to set different temperatures for individual rooms.

UK customer service

Have a question? Wiser's highly trained technical team is there for you Monday-Friday 8am-6pm, online and by phone.

3 year warranty

Enjoy peace of mind with our high quality products when you need it the most, backed by 75 years of innovation.

Looking for more Wiser Add-ons?

Build your system further using our add-ons, effortlessly integrating with your smart thermostat kit for enhanced efficiency and comfort.

View all

Smart Radiator Thermostat

Expand your Wiser system and benefit from room-by-room control with our Smart Radiator Thermostat. Set independent schedules for every room and enhance your comfort and energy savings.

4.4

From £56.50

Smart Radiator Thermostat Multipack

Control more rooms for less with our multipack. Extend your smart home for ultimate comfort and energy savings when you add a Smart Radiator Thermostat to every room.

5.0

£160.00

Smart Plug

Enhance your smart home with the Wiser Plug, a smart plug that both gives you smart control of electrical devices and boosts signal.

4.4

£43.50

Smart Room Thermostat

Create more zones in your buildable Wiser multi-room heating system with an add-on Smart Room Thermostat, letting you further personalise your heating for better efficiency.

4.1

From £105.00

Electrical Heat Switch

Ideal for mixed heating systems, enable smart control of electric heaters and electric underfloor heating via the Wiser Home app.

4.5

£67.00

Smart Underfloor Heating Controller

Ideal for mixed heating systems, the Wiser Underfloor Heating Controller enables app control of your water based underfloor heating.

£336.00

FAQ

Where do I install the TS Ultra+?

Quick and simple installation on an existing water-based underfloor heating manifold.

What does the Drayton TS Ultra+ actuator do?

The TS Ultra+ is a thermal actuator that controls the flow of water through underfloor heating manifolds. It opens or closes individual heating zones based on signals from room thermostats.

Is the TS Ultra+ compatible with my underfloor heating system?

It fits most standard underfloor heating manifolds with M30 x 1.5mm thread and operates on 230V AC. Always check your manifold specifications before purchasing.

How is the TS Ultra+ installed?

Installation involves screwing the actuator onto the manifold port and connecting it to the control wiring. It’s a straightforward process for professionals or experienced DIYers, but a qualified installer is recommended for best results.

Looking for a complete smart heating kit?

Use our Product Selector

*Smart thermostat system percentage savings based on BEAMA and Salford university research statistics 2021. Savings are a guideline and will vary based on your home's thermal performance.
