2nd Generation | Dimmer Micro Module | Wiser Home App Compatible

2nd Generation | Dimmer Micro Module | Wiser Home App Compatible

Name: 2nd Generation | Dimmer Micro Module | Wiser Home App Compatible
Brand: Drayton by Schneider Electric
SKU: CCT5010-0003
Price: 52.0 GBP
Availability: InStock

The Wiser Dimmer Micro Module lets you create the ambiance without the agitation. Seamlessly connect to any Wiser 2nd Generation Hub to gain full control of dimmable LED lighting with customisable schedules and automations.

• Enjoy a rich smart home experience with smart control, monitoring and automation options.

• Control devices from anywhere via the Wiser Home app.

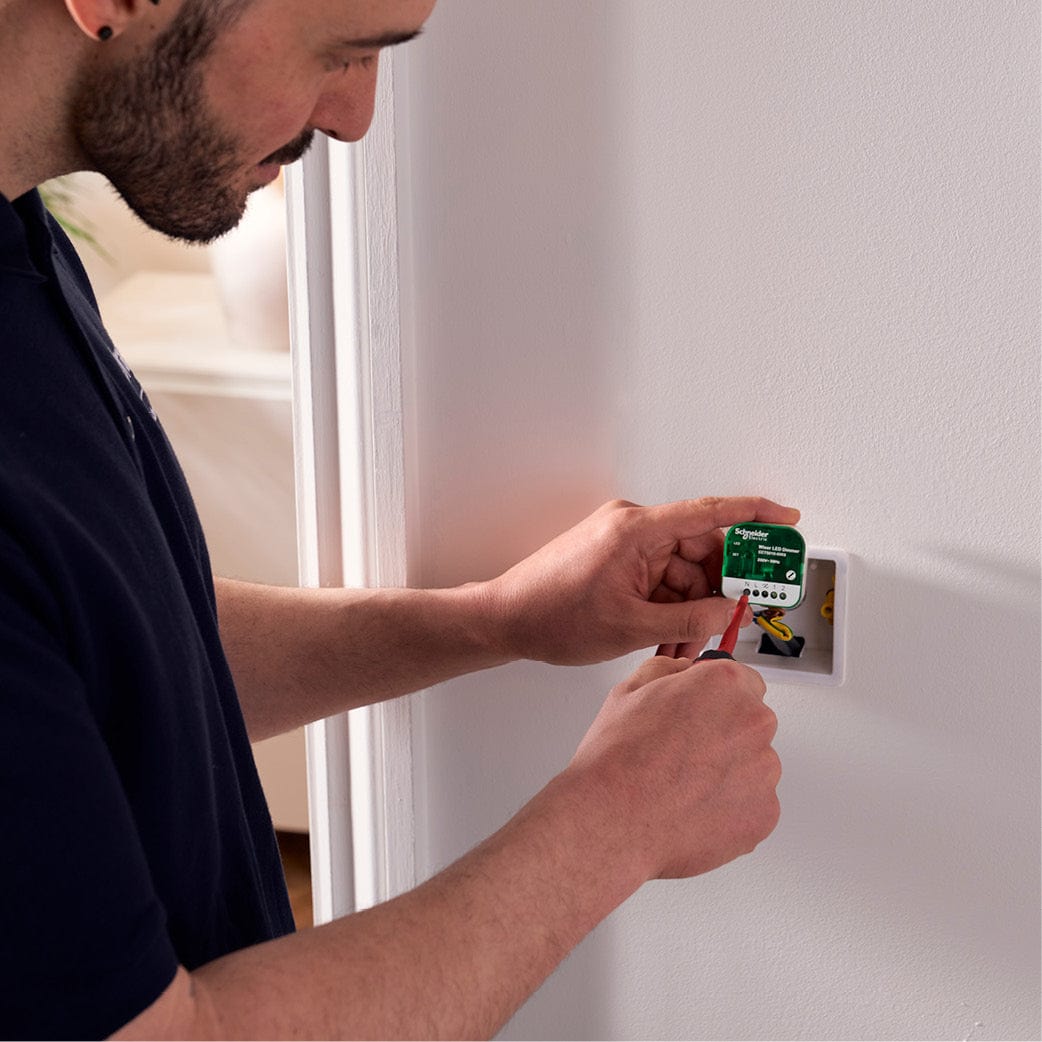

• Easy installation with straightforward wiring plus simple wireless pairing.

£52.00

Quantity:

Estimated delivery 3-5 working days (Free Delivery over £75 & Free Returns)

2nd Generation | Dimmer Micro Module | Wiser Home App Compatible

£52.00

Get to know the Dimmer Micro Module

Set the mood without the fuss with an easy and smart upgrade for your dimmers. Create automations like scheduled dimming in the evenings, or tailored Moments for movie night.

Connect to any Wiser 2nd Generation Hub to enable smart control, automation and scheduling of dimmable LED lighting via the Wiser Home app and voice control via smart speakers. Install with a momentary switch for in-room control.

• Enable smart lighting control via the Wiser Home app
• Compatible with dimmable LEDs
• Create automations and Moments
• Works without a neutral connection
• Works with Amazon Alexa, the Google Home and IFTTT
• Requires any Wiser 2nd Generation Hub

Specifications

SKU	CCT5010-0003
Mobile app name	Wiser Home
Warranty	Extended 3 year warranty
Kit composition	1 x Wiser Micro Module Dimmer 1 x Installation instructions
Lighting Dimmer Micro Module dimensions	45mm (w) 45mm (h) 18.4mm (d)
Lighting Dimmer Micro Module power supply	230V a.c. ±5% 50Hz
Lighting Dimmer Micro Switch Rating	230V a.c. 1.3A
Lighting Dimmer Micro Module wiring	Fixed wiring only, to comply with current IET regulations (BS7671)
Lighting Dimmer Micro Module ingress protection	IP20
Lighting Dimmer Micro Module mounting	Backbox
Radio technology/frequency	Zigbee: 2.4 GHz, IEEE802.15.4

Documentation

Wiser System User Guide

Dimmer Micro Module Instructions

Manage your home anywhere

Wiser’s intuitive app provides seamless control over your smart home system, allowing you to adjust settings remotely.

Cut annual bills

Start saving right away with the flexibility to tailor schedules, plus Smart Modes that learn and adapt to save up to 30%* energy.

The all-in-one-automation solution

Wiser’s advanced zoning capabilities allow you to set different temperatures for individual rooms and use smart sensors and power modules to monitor, control and set custom automations.

UK customer service

Have a question? Wiser's highly trained technical team is there for you Monday-Friday 8am-6pm, online and by phone.

3 year warranty

Enjoy peace of mind with our high quality products when you need it the most, backed by 75 years of innovation.

Shop the full Micro Module range

Browse all the smart micro modules to enhance convenience and tailor your home environment, anywhere, any time. Create schedules and bespoke Moments for a rich smart home experience.

View all

Dimmer Micro Module

Connect to a 2nd Generation Hub to enable smart control, automation and scheduling of dimmable LED lighting via the Wiser Home app and voice control via smart speakers.

£52.00

Power Micro Module

Connect to any Wiser 2nd Generation Hub for smart control, scheduling, automation and energy monitoring of loads up 3000W 14A via our app, or with voice control via smart speakers.

£52.00

Shades Control Micro Module

Connect to a 2nd Generation Hub for smart control, scheduling and automation of motorised blinds, curtains, shutters and awnings via the Wiser Home app and voice control via smart speakers.

£49.50

Extend and automate with Wiser Smart Sensors

Build your system further using Smart Sensors, effortlessly integrating with Wiser 2nd Generation systems to allow extensive monitoring and automation possibilities.

View all

Temperature & Humidity Sensor

A low-cost alternative to our room thermostat. Connect to a 2nd Generation Hub to monitor temperature and humidity remotely and automate with other Wiser devices.

£27.00

Motion Sensor

Connect to the Wiser 2nd Generation Hub/HubR for motion detection alerts. Pair with the Wiser plug or Wiser LED Dimmer to turn on lights when motion is detected, for both convenience and security.

£29.00

Window & Door Sensor

Connect to the Wiser 2nd Generation Hub/HubR to remotely monitor windows and doors. Set automations with Wiser Thermostats to turn heating off if an open window or door is detected.

£27.00

Battery Smoke Alarm

Battery-powered smoke alarm which can connect with up to 40 other Wiser Smoke Alarms. Connect to the Wiser 2nd Generation Hub/HubR for smartphone notifications and in-app status monitoring.

£58.00

Water Leakage Sensor

Detects the presence of water with an audible alarm. Connect to Wiser 2nd Generation Hub/HubR for smartphone alerts and in-app monitoring in at-risk areas like baths and sinks.

£29.00

But don't just take our word for it...

Paul S.

Wiser? Appropriate name.

I have dropped my gas consumption by approximately 18% every year for the last 3 years. It's more than paid for itself plus some. Very easy to install and set up. Had no issues with it, very happy.

Ken D.

Fantastic and straight forward to install.

I’m 73 and installed the Wiser Hub, thermostat and smart TRVs a couple of weeks ago. I think the system is fantastic and straight forward to install. There’s tons of advice and tips on YouTube but the more you use it the more intuitive it becomes!

Mr. C.

No regrets.

The Wiser system is like a breath of fresh air - it just works as it's supposed to.
No regrets.

FAQ

What does the Wiser LED Dimmer Micro Module do?

It transforms a conventional light switch into a smart dimmer, allowing you to control and dim compatible LED, ohmic, inductive, or capacitive loads via the Wiser Home app or a push-button switch.

How does it improve lighting control and energy efficiency?

You can schedule, automate, and remotely control your lighting, helping reduce energy usage and create the perfect ambiance for any room.

Does the module require a neutral connection?

No, the module will work without the need for a neutral connection, meaning it is perfect for installation at the existing light switch position.

Is it easy to install and pair with the Wiser system?

Yes. The module is designed for in-wall installation behind existing switches. Pairing with the Wiser Hub is done via the Wiser Home app in just a few steps.

Can I still use my existing wall switch with the module?

Absolutely. The module works with standard mechanical push-button switches, so you retain manual control while gaining smart functionality.

Is it compatible with other Wiser smart devices?

The Wiser LED Dimmer Micro Module is compatible with Wiser 2nd generation HubRs & Hub allowing you to include lighting in broader home automations like turning on lights when motion is detected or when you arrive home.

Looking for a complete smart heating kit?

Use our Product Selector

*Smart thermostat system percentage savings based on BEAMA and Salford university research statistics 2021. Savings are a guideline and will vary based on your home's thermal performance.
