2nd Generation | Power Micro Module | Wiser Home App Compatible

2nd Generation | Power Micro Module | Wiser Home App Compatible

Name: 2nd Generation | Power Micro Module | Wiser Home App Compatible
Brand: Drayton by Schneider Electric
SKU: CCTFR6730
Price: 52.0 GBP
Availability: InStock
Rating: 2.0 (1 reviews)

The Wiser Power Micro Module puts smarter control of your high load devices of up to 3000W at your fingertips. Seamlessly connect to any Wiser 2nd Generation Hub to gain full control of devices such as immersion heaters with customisable schedules.

• Enjoy a rich smart home experience that goes beyond heating with smart control, monitoring and automation options.
• Control devices from anywhere via the Wiser Home app.
• Easy installation with straightforward wiring plus simple wireless pairing.
• No subscription fee.

£52.00

2.0

Quantity:

Estimated delivery 3-5 working days (Free Delivery over £75 & Free Returns).

2nd Generation | Power Micro Module | Wiser Home App Compatible

£52.00

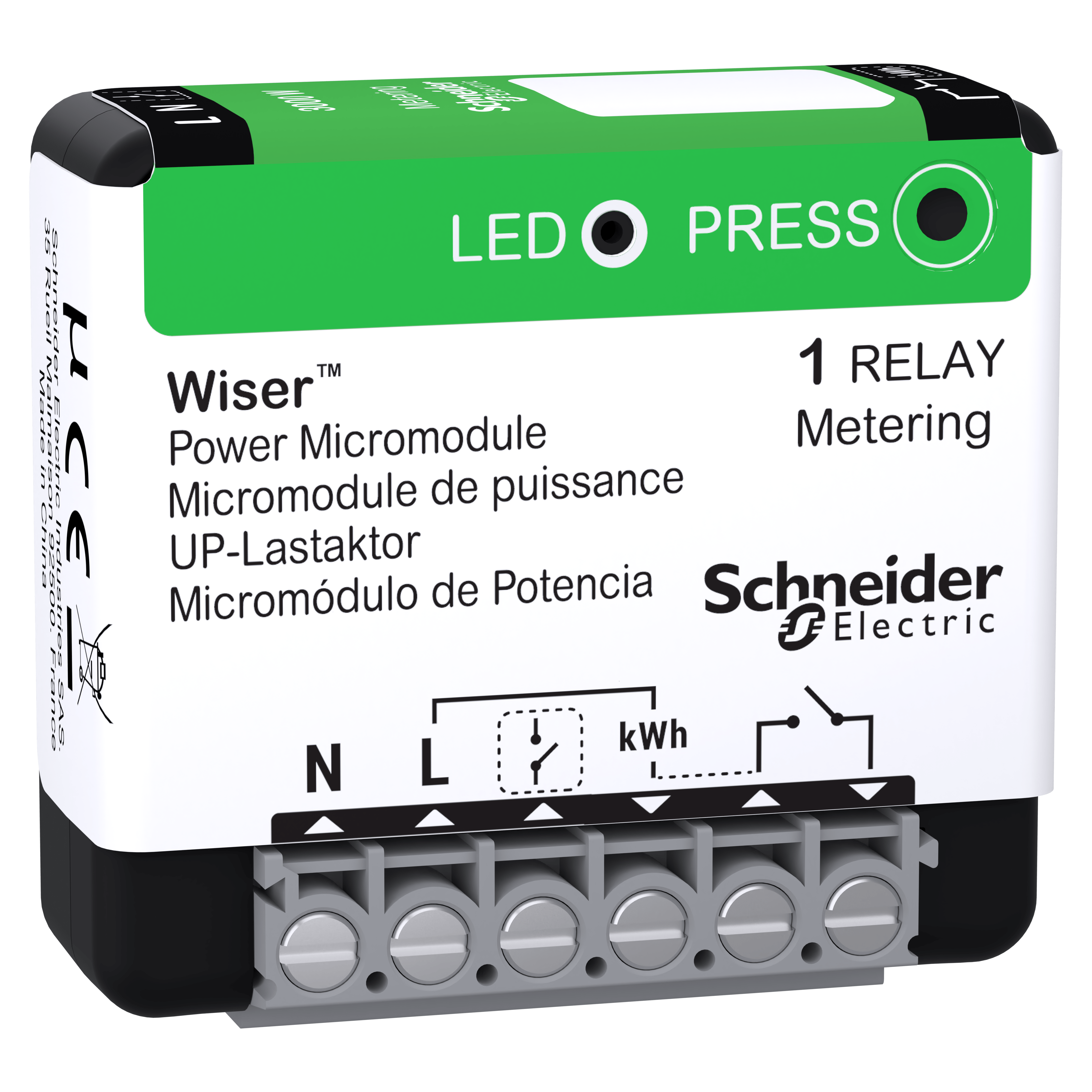

Get to know the Power Micro Module

A Power Micro Module puts smart scheduling of your appliances up to 3000W in your hands, tracking real-time power consumption via the Wiser Home app. Enjoy a richer smarter home experience that goes beyond heating with Wiser 2nd Generation smart sensors and micro modules.

• Control and schedule electrical loads up to 3000W resistive via the Wiser Home app
• Automation options with other Wiser device integrations
• Wiser Home app records and displays power consumption
• Activate Away Mode to save energy
• Works with Amazon Alexa, Google Assistant and IFTTT
• Requires any Wiser 2nd Generation Hub

Specifications

SKU	CCTFR6730
Mobile app name	Wiser Home
Warranty	Extended 3 year warranty
Kit composition	1 x Wiser Power Micro Module 1 x Installation instructions
Power Micro Module dimensions	44mm (w) 40mm (h) 16.9mm (d)
Power Micro Module power supply	230V a.c. ±10% 50Hz
Power Micro Module Switch Rating	230V a.c. 14A resistive, 5A, cosφ = 0.6 inductive
Power Micro Module wiring	Fixed wiring only, to comply with current IET regulations (BS7671)
Power Micro Module ingress protection	IP20
Radio technology/frequency	Zigbee: 2.4 GHz, IEEE802.15.4

Documentation

Wiser System User Guide

Power Micro Module Instructions

Manage your home anywhere

Wiser’s intuitive app provides seamless control over your smart home system, allowing you to adjust settings remotely.

Cut annual bills

Start saving right away with the flexibility to tailor schedules, plus Smart Modes that learn and adapt to save up to 30%* energy.

The all-in-one-automation solution

Wiser’s advanced zoning capabilities allow you to set different temperatures for individual rooms and use smart sensors and power modules to monitor, control and set custom automations.

UK customer service

Have a question? Wiser's highly trained technical team is there for you Monday-Friday 8am-6pm, online and by phone.

3 year warranty

Enjoy peace of mind with our high quality products when you need it the most, backed by 75 years of innovation.

Shop the full Micro Module range

Browse all the smart micro modules to enhance convenience and tailor your home environment, anywhere, any time. Create schedules and bespoke Moments for a rich smart home experience.

View all

Dimmer Micro Module

Connect to a 2nd Generation Hub to enable smart control, automation and scheduling of dimmable LED lighting via the Wiser Home app and voice control via smart speakers.

£52.00

Power Micro Module

Connect to any Wiser 2nd Generation Hub for smart control, scheduling, automation and energy monitoring of loads up 3000W 14A via our app, or with voice control via smart speakers.

2.0

£52.00

Shades Control Micro Module

Connect to a 2nd Generation Hub for smart control, scheduling and automation of motorised blinds, curtains, shutters and awnings via the Wiser Home app and voice control via smart speakers.

£49.50

Extend and automate with Wiser Smart Sensors

Build your system further using Smart Sensors, effortlessly integrating with Wiser 2nd Generation systems to allow extensive monitoring and automation possibilities.

View all

Temperature & Humidity Sensor

A low-cost alternative to our room thermostat. Connect to a 2nd Generation Hub to monitor temperature and humidity remotely and automate with other Wiser devices.

£27.00

Motion Sensor

Connect to the Wiser 2nd Generation Hub/HubR for motion detection alerts. Pair with the Wiser plug or Wiser LED Dimmer to turn on lights when motion is detected, for both convenience and security.

£29.00

Window & Door Sensor

Connect to the Wiser 2nd Generation Hub/HubR to remotely monitor windows and doors. Set automations with Wiser Thermostats to turn heating off if an open window or door is detected.

£27.00

Battery Smoke Alarm

Battery-powered smoke alarm which can connect with up to 40 other Wiser Smoke Alarms. Connect to the Wiser 2nd Generation Hub/HubR for smartphone notifications and in-app status monitoring.

£58.00

Water Leakage Sensor

Detects the presence of water with an audible alarm. Connect to Wiser 2nd Generation Hub/HubR for smartphone alerts and in-app monitoring in at-risk areas like baths and sinks.

£29.00

FAQ

How does it help me save energy and manage consumption?

By integrating with the Wiser Home app, you can track energy usage, set schedules, and automate power control, helping you reduce consumption during peak hours and lower your electricity bills.

Is it easy to install and connect to the Wiser system?

Yes. The module is designed to be fitted in a wall box and connects easily to your Wiser Hub via the Wiser Home app. Up to 20 modules can be added to a single system.

Can I automate when the module turns on or off?

Absolutely. You can create custom automations and schedules in the Wiser Home app, allowing the module to respond to time, energy tariffs, or other smart device triggers.

Do I need a Wiser 2nd Generation hub to use the Wiser Power Micro Module?

The Wiser Power Micro Module is compatible with all Wiser 2nd generation Hubs, enabling coordinated control with thermostats, sensors, and other modules.

Looking for a complete smart heating kit?

Use our Product Selector

*Smart thermostat system percentage savings based on BEAMA and Salford university research statistics 2021. Savings are a guideline and will vary based on your home's thermal performance.
